As the name implies, 3020 means that his journey is (300*200)mm, and the height standard models are 200mm. By analogy, HY-4030 and HY-5040 mean that their journey is (400*300)mm (500*400)mm, which represents their effective test range.

The image measuring instrument is mainly used for some plane size detection. If you want to do some simple three-dimensional tolerance detection, you need to add a probe. All models can be added. Automatic and gantry models can be equipped with automatic zoom.

The most important thing to choose the model is to determine the maximum size of the product you are testing to choose the model, and then choose manual semi-automatic or full-automatic according to the test volume in one day.

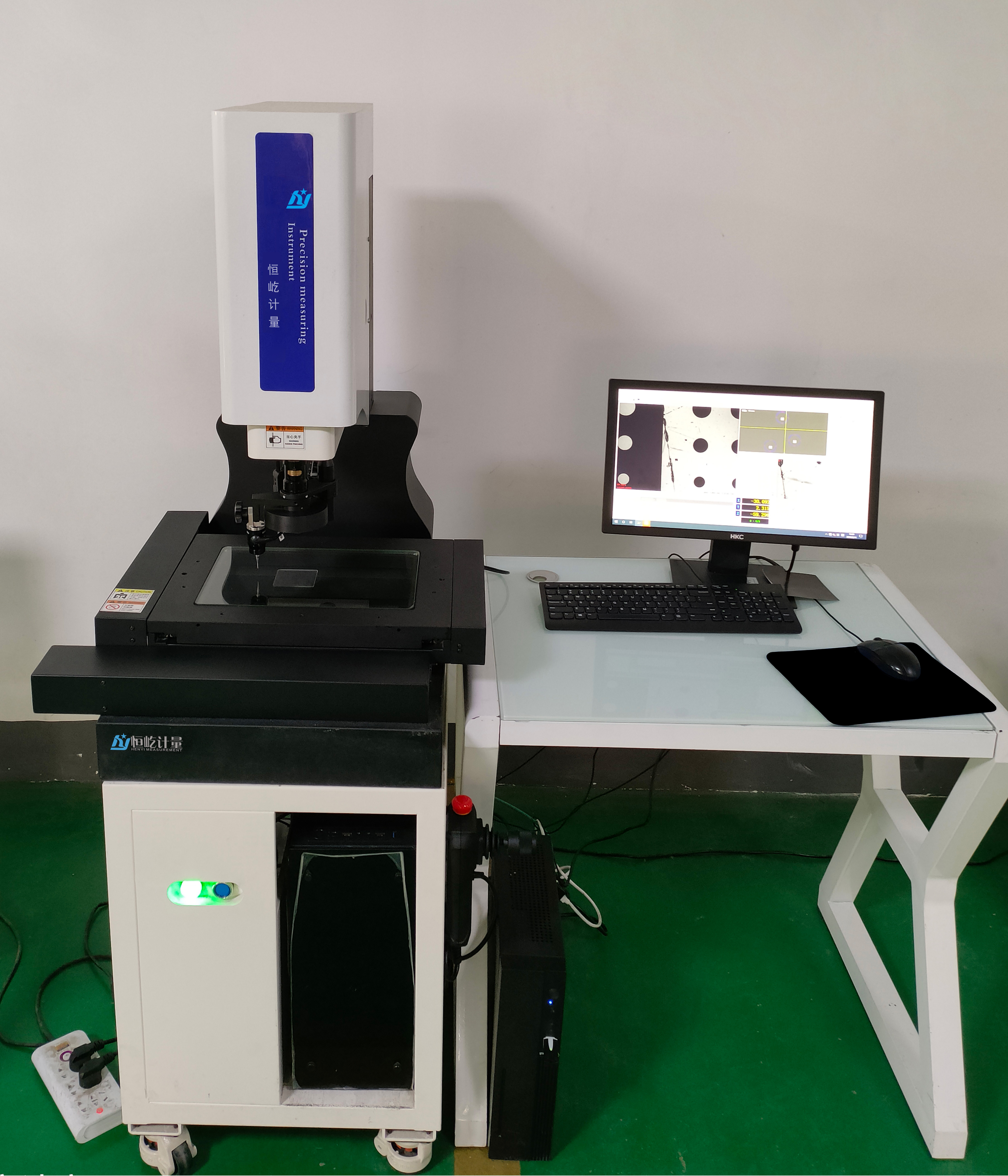

Manual type: HY-3020, HY-4030, HY-5040. All three axes of manual XYZ are driven by hand rocker.

Semi-automatic models: HY3020BZD, HY-4030BZD, HY-5040BZD. Semi-automatic XY-axis is driven by hand rocker and Z-axis is driven by electric motor, which can be used for height measurement of some simple products.

Fully automatic models: HY-3020ZD, HY-4030ZD and HY-5040ZD fully automatic models XYZ three axes are controlled by electric drive motors. Can complete the coordinate system programming, random placement, the program can be saved and shifted.

Gantry model: LM CNC 6050LM CNC 8060LM CNC 1080LM CNC 1210 and so on. Non-standard customized gantry includes all functions of fully automatic model.
